Architectural Uplighting / In-Ground
TAURUS
Nominal Voltage
| 220-240 VAC
|
Body Materials
| Stainless Steel with housing box
|
Optics
| Tempered Glass
|

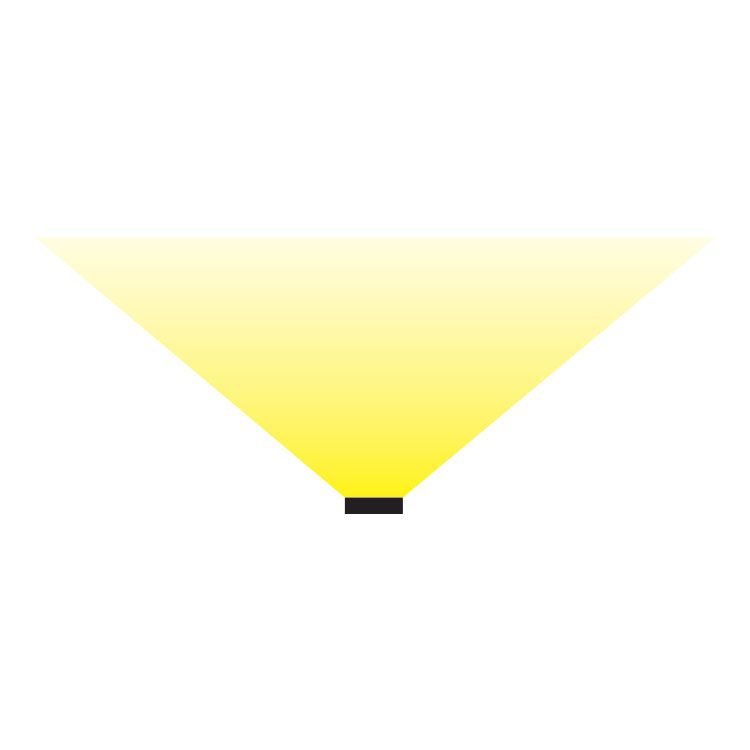

Beam Angle
| Optional
|
Led Options
| Osram, Seoul, Nichia, Cree
|
Class
| I
|
Ingress Protection
| IP65 - IP67
|
Optional
| Dimmer, DALI, DMX
|
Product Code
| Power Consumption (W)
| Output Lumen (lm)
| Correlated Color Temperature (CCT)
| Color Rendering Index (CRI)
|
YL-GM-09
| 9 - 24
| 1125 - 2880
| 3000K / 4000K / 6500K / RGB
| Min. 80
|
YL-GM-18
| 24 - 36
| 2880 - 4500
| 3000K / 4000K / 6500K / RGB
| Min. 80
|

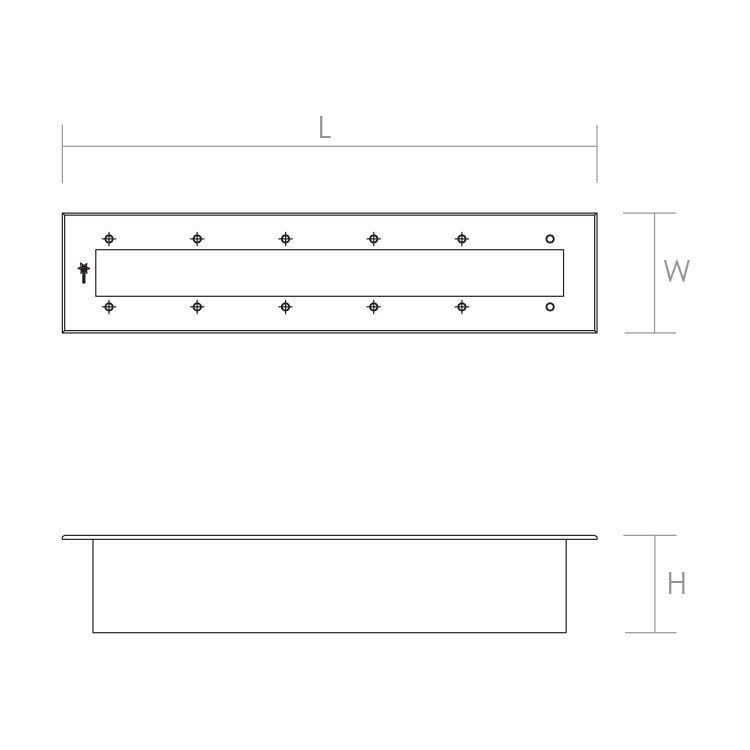

Product Code / Dimensions (mm)
| L | W | H | Weight (gr)
|
YL-GM-09
| 400
| 90 | 70 | 4500
|
YL-GM-18
| 400
| 160 | 90
| 6000
|
