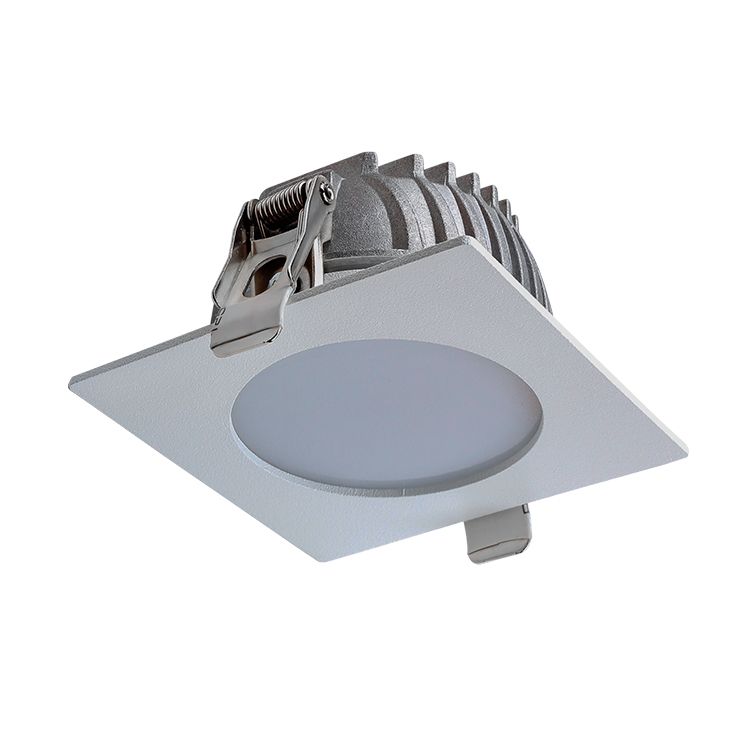

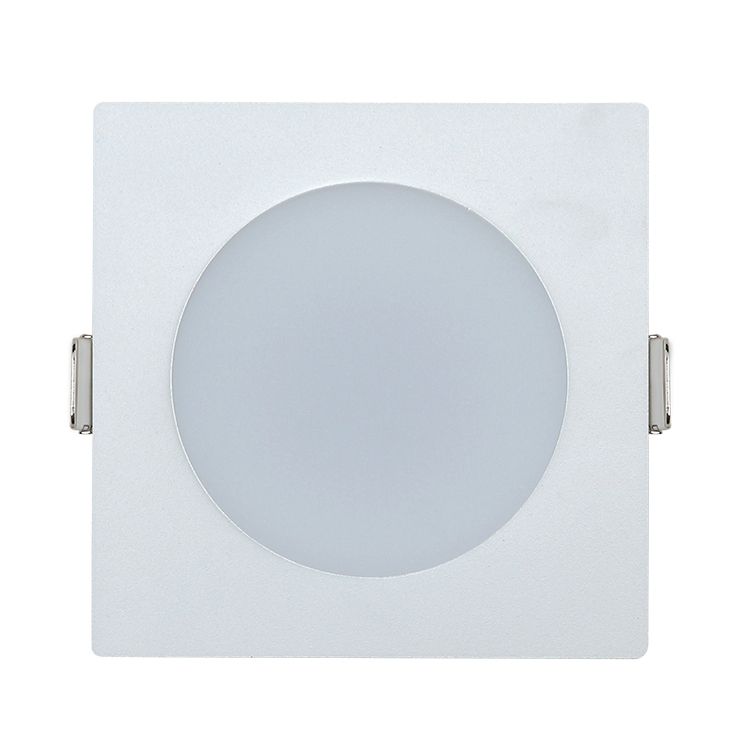

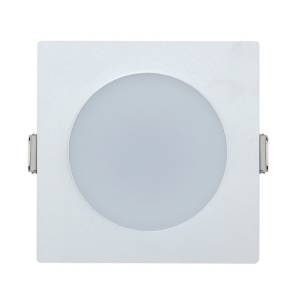

Downlight Recessed
ALNILAM
Nominal Voltage
| 220-240 VAC
|
Body Materials
| Aluminum
|

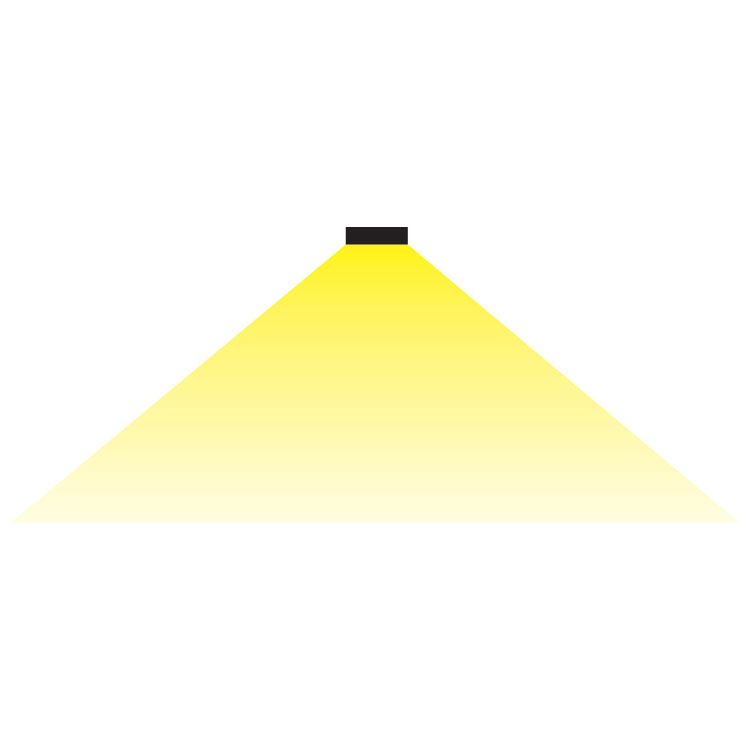

Optics
| PMMA Diffuser
|
Led Options
| Osram, Seul, Samsung
|
Class
| II
|
Ingress Protection
| IP40 - IP65
|
Optional
| Dimmer, DALI, Emergency Kit, Seperately Mounted Sensor
|
Product Code
| Power Consumption (W)
| Output Lumen (lm)
| Correlated Color Temperature (CCT)
| Color Rendering Index (CRI)
|
YL-SPT-8-6
| 6 | 75 | 3000K / 4000K / 6500K
| Min. 80
|
YL-SPT-8-8
| 8 | 1000
| 3000K / 4000K / 6500K
| Min. 80
|
YL-SPT-8-12
| 12 | 1500
| 3000K / 4000K / 6500K
| Min. 80
|
YL-SPT-8-16
| 16 | 2000
| 3000K / 4000K / 6500K
| Min. 80
|
YL-SPT-8-20
| 20 | 2500
| 3000K / 4000K / 6500K
| Min. 80
|
YL-SPT-8-25
| 25 | 3125
| 3000K / 4000K / 6500K
| Min. 80
|

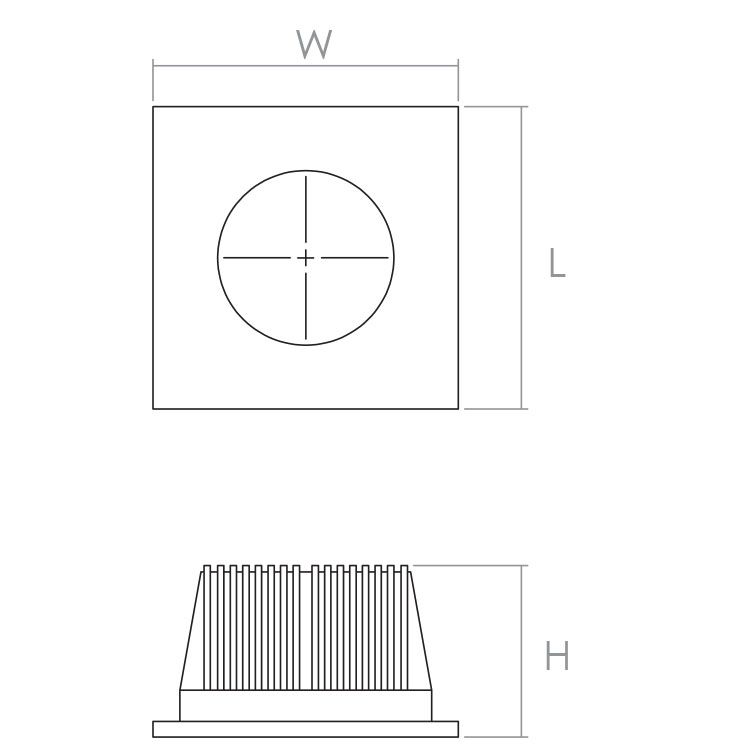

Product Code / Dimension (mm)
| L
| W
| H
| Weight (gr)
| Cut Out
|
YL-SPT-8-6
| 97
| 97
| 55
| 370
| 85
|
YL-SPT-8-8
| 117
| 117
| 48
| 420
| 105
|
YL-SPT-8-12
| 147
| 147
| 54
| 580
| 130
|
YL-SPT-8-16
| 175
| 175
| 58
| 720
| 160
|
YL-SPT-8-20
| 192
| 192
| 55 | 860
| 175
|
YL-SPT-8-25
| 227
| 227
| 58
| 1200
| 210
|
