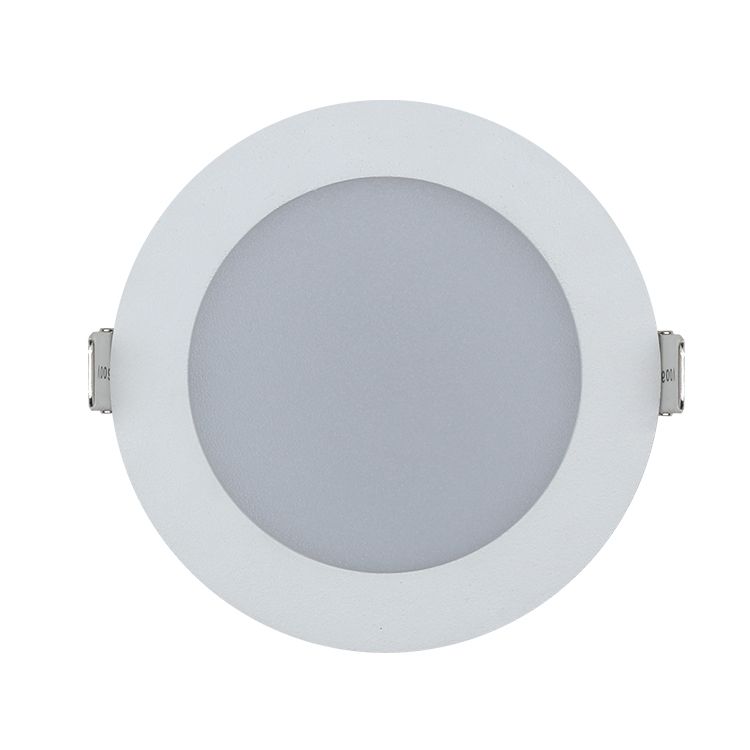

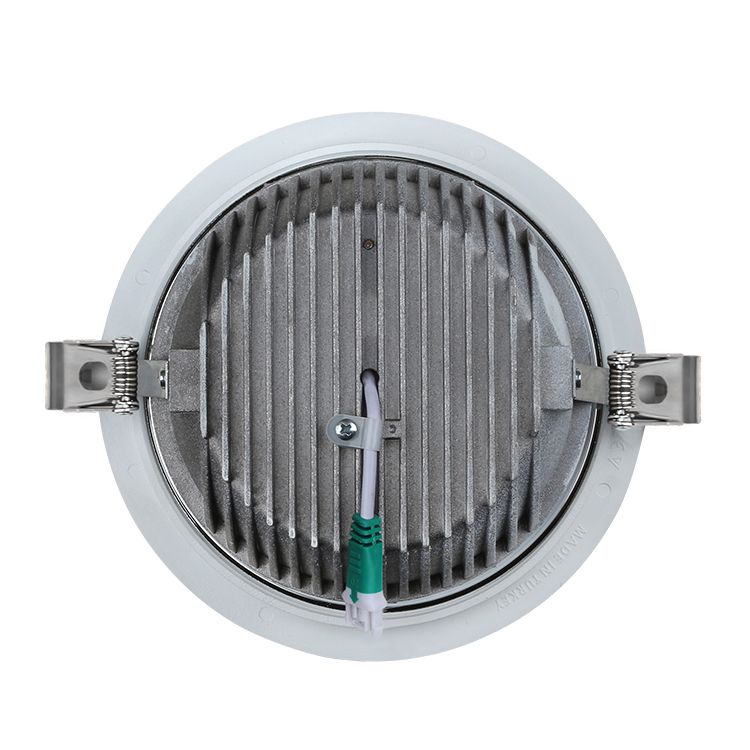

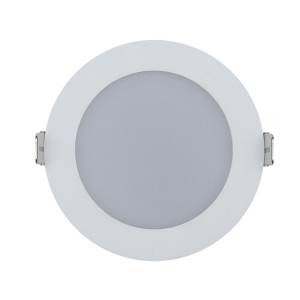

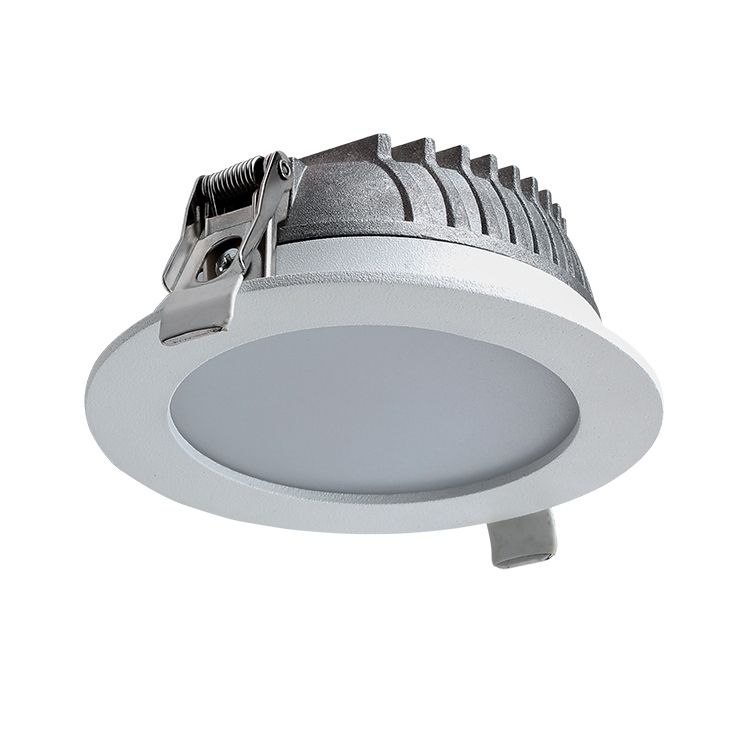

Downlight Recessed
ALPHARD
Nominal Voltage
| 220-240 VAC
|
Body Materials
| Aluminum
|

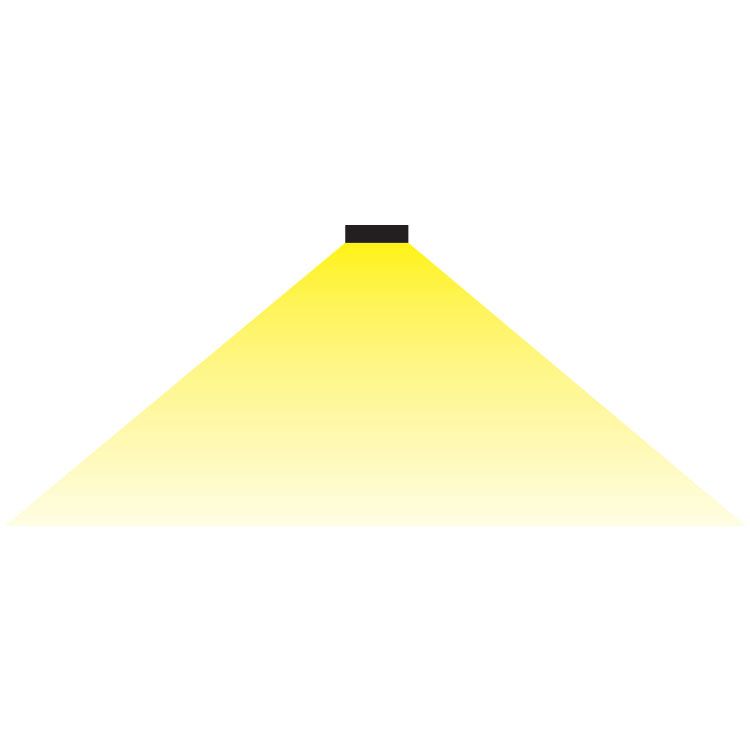

Optics
| PMMA Diffuser
|
Led Options
| Osram, Seul, Samsung
|
Class
| II
|
Ingress Protection
| IP40 - IP65
|
Optional
| Dimmer, DALI, Emergency Kit, Seperately Mounted Sensor
|
Product Code
| Power Consumption (W)
| Output Lumen (lm)
| Correlated Color Temperature (CCT)
| Color Rendering Index (CRI)
|
YL-SPT-4-6
| 6 | 750
| 3000K / 4000K / 6500K
| Min. 80
|
YL-SPT-4-8
| 8 | 1000 | 3000K / 4000K / 6500K
| Min. 80
|
YL-SPT-4-12
| 12 | 1500
| 3000K / 4000K / 6500K
| Min. 80
|
YL-SPT-4-16
| 16 | 2000
| 3000K / 4000K / 6500K
| Min. 80
|
YL-SPT-4-20
| 20 | 2500
| 3000K / 4000K / 6500K
| Min. 80
|
YL-SPT-4-25
| 25 | 3125
| 3000K / 4000K / 6500K
| Min. 80
|

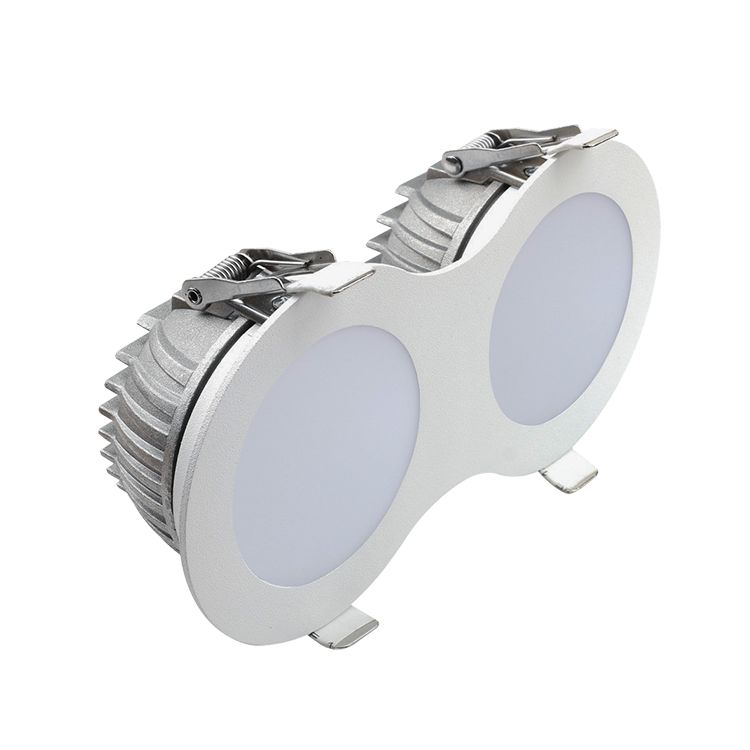

YL-SPT-4-12D
| 12 | 1500
| 3000K / 4000K / 6500K
| Min. 80
|
YL-SPT-4-16D
| 16 | 2000 | 3000K / 4000K / 6500K
| Min. 80
|
YL-SPT-4-24D
| 24 | 3000 | 3000K / 4000K / 6500K
| Min. 80
|
YL-SPT-4-32D
| 32 | 4000 | 3000K / 4000K / 6500K
| Min. 80
|
YL-SPT-4-40D
| 40 | 5000 | 3000K / 4000K / 6500K
| Min. 80
|

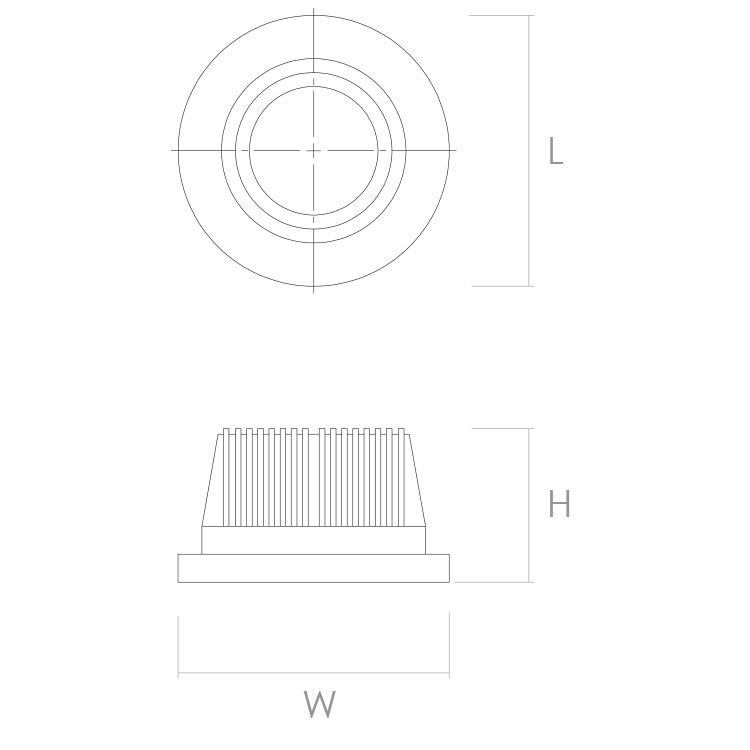

Product Code / Dimension (mm)
| L
| W | H | Weight (gr)
| Cut Out
|
YL-SPT-4-6
| 97 | 97 | 55 | 260 | 85 |
YL-SPT-4-8
| 117 | 117 | 85 | 320
| 105 |
YL-SPT-4-12
| 147 | 147 | 55 | 430
| 130 |
YL-SPT-4-16
| 175 | 175 | 58 | 520
| 160 |
YL-SPT-4-20
| 192 | 192 | 55 | 620
| 175 |
YL-SPT-4-25
| 227 | 227 | 58 | 880 | 210 |
YL-SPT-4-12D
| 194 | 97 | 55 | 680 | 2*85
|
YL-SPT-4-16D
| 234
| 117
| 48 | 750 | 2*105
|
YL-SPT-4-24D
| 294
| 147
| 54
| 1100
| 2*130
|
YL-SPT-4-32D
| 350
| 175 | 58
| 1350
| 2*160
|
YL-SPT-4-40D
| 384
| 192
| 55
| 1500 | 2*175
|
