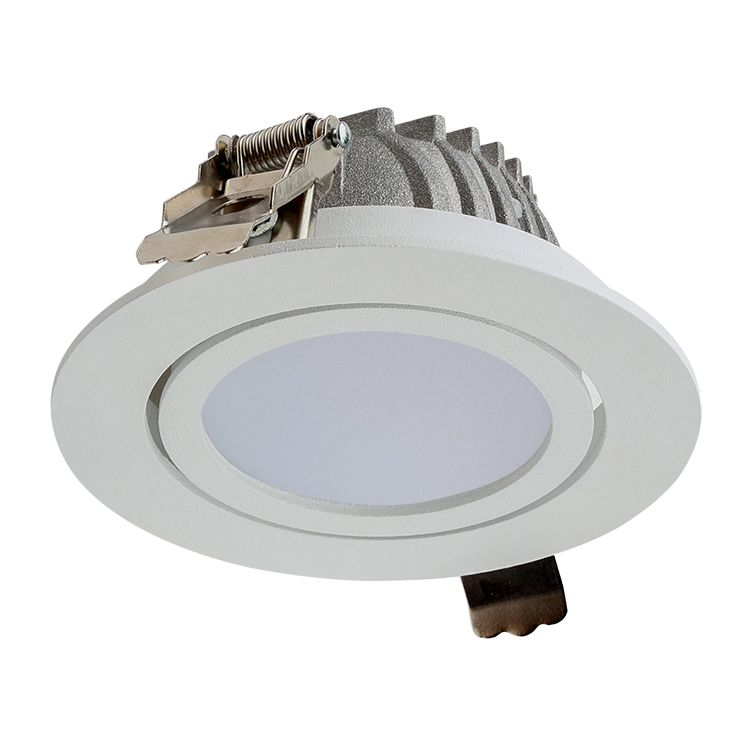

Downlight Recessed
ASCELLA
Nominal Voltage
| 220-240 VAC
|
Body Materials
| Aluminum
|
Optics
| PMMA Diffuser
|
Led Options
| Osram, Seul, Samsung
|
Class
| II
|
Ingress Protection
| IP40 - IP65
|
Optional
| Dimmer, DALI, Emergency Kit, Seperately Mounted Sensor
|
Product Code
| Power Consumption (W)
| Output Lumen (lm)
| Correlated Color Temperature (CCT)
| Color Rendering Index (CRI)
|
YL-SPT-6-4
| 6 | 750
| 3000K / 4000K / 6500K
| Min. 80
|
YL-SPT-6-6
| 6 | 750
| 3000K / 4000K / 6500K
| Min. 80
|
YL-SPT-6-8
| 8 | 1000 | 3000K / 4000K / 6500K
| Min. 80
|
YL-SPT-6-12
| 12 | 1500 | 3000K / 4000K / 6500K
| Min. 80
|

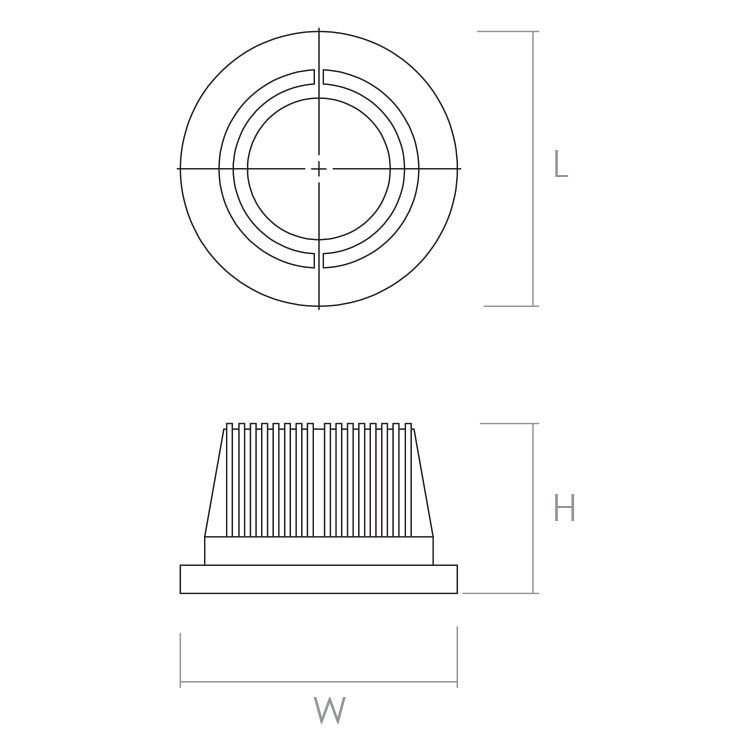

Product Code / Dimension (mm)
| L
| W
| H
| Weight (gr)
| Cut Out
|
YL-SPT-6-4
| 97
| 97
| 60 | 250 | 85
|
YL-SPT-6-6
| 117
| 117
| 45 | 300
| 105
|
YL-SPT-6-8
| 147
| 147
| 55 | 400
| 130
|
YL-SPT-6-12
| 175
| 175
| 55 | 500
| 160
|
