Yıldız Led Lighting Solutions
Linear Recessed

SAIPH

SAIPH
Nominal Voltage
220-240 VAC
Body Materials
Aluminum
Optics
PMMA Diffuser
Led Options
Osram, Seul, Cree
Class
I
Ingress Protection
IP40 - IP65
Optional
Dimmer, DALI, Emergency Kit, Sensor
Product Code
Power Consumption (W)
Output Lumen (lm)
Correlated Color Temperature (CCT)
Color Rendering Index (CRI)
YL-RL-1
15W/m
1800lm/m
3000K / 4000K / 6500K
Min. 80
YL-RL-2
25W/m
3000lm/m
3000K / 4000K / 6500K
Min. 80
YL-RL-3
35W/m
4200lm/m
3000K / 4000K / 6500K
Min. 80
YL-RL-4
45W/m
5400lm/m
3000K / 4000K / 6500K
Min. 80
YL-RL-5
55-75W/m
6600-9000lm/m
3000K / 4000K / 6500K
Min. 80
Product Code / Dimension (mm)
L
W
H
Weight (gr)
YL-RL-1
Optional
55
40
680
YL-RL-2
Optional
75
40
750
YL-RL-3
Optional
110
75
1100
YL-RL-4
Optional
82
65
1350
YL-RL-5
Optional
70
70
1500

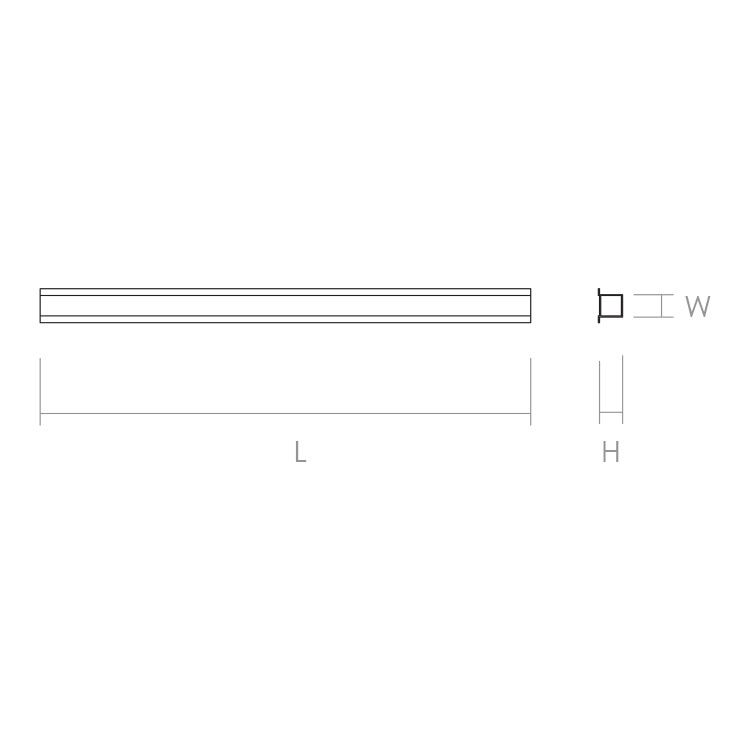

Technical Drawing

SAIPH

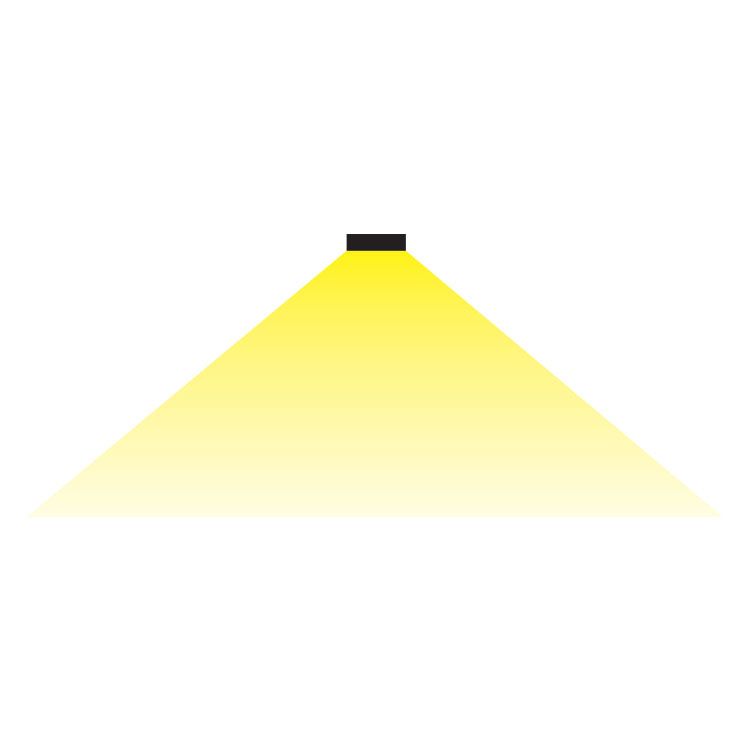

Light Distribution

SAIPH
