Yıldız Led Lighting Solutions
Linear Surface

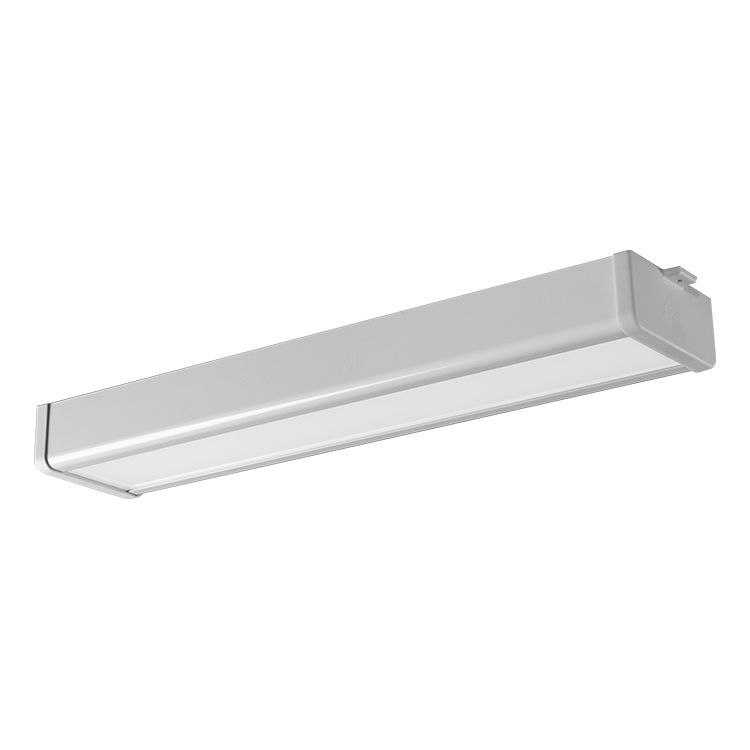

CASTOR LINE

CASTOR LINE
Nominal Voltage
220-240 VAC
Body Materials
Aluminum
Optics
PMMA Diffuser
Led Options
Osram, Seul, Cree
Class
I
Ingress Protection
IP40 - IP65
Optional
Dimmer, DALI, Emergency Kit, Sensor
Product Code
Power Consumption (W)
Output Lumen (lm)
Correlated Color Temperature (CCT)
Color Rendering Index (CRI)
LL-15W6012
171700
3000K / 4000K / 6500K
Min. 80
LL-30W12012
353500
3000K / 4000K / 6500K
Min. 80
LL-15W15012
454500
3000K / 4000K / 6500K
Min. 80
Product Code / Dimension (mm)
L
W
H
Weight (gr)
LL-15W6012
600
120
60
1500
LL-30W12012
1200
120
60
2500
LL-15W15012
1500
120
60
4500

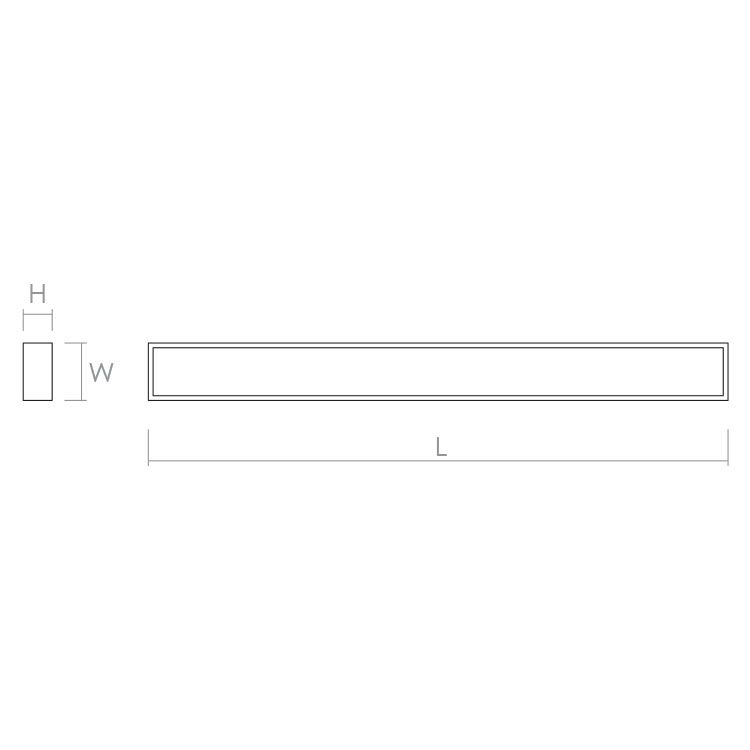

Technical Drawing

CASTOR LINE

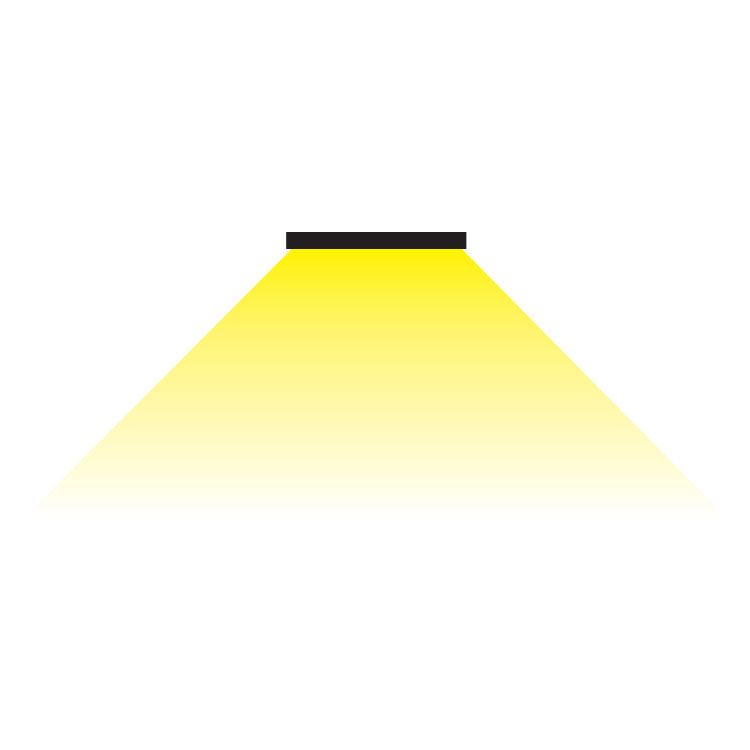

Light Distribution

CASTOR LINE
