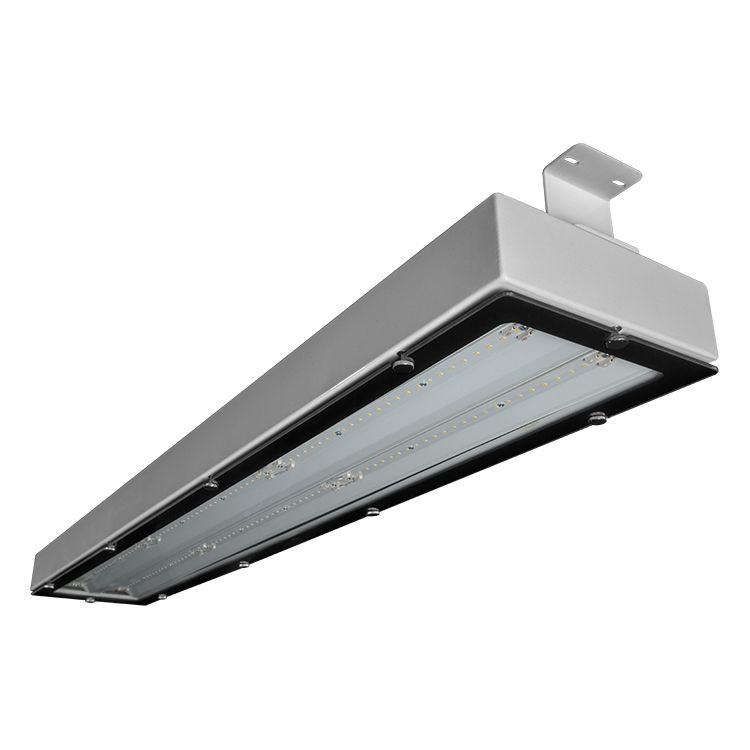

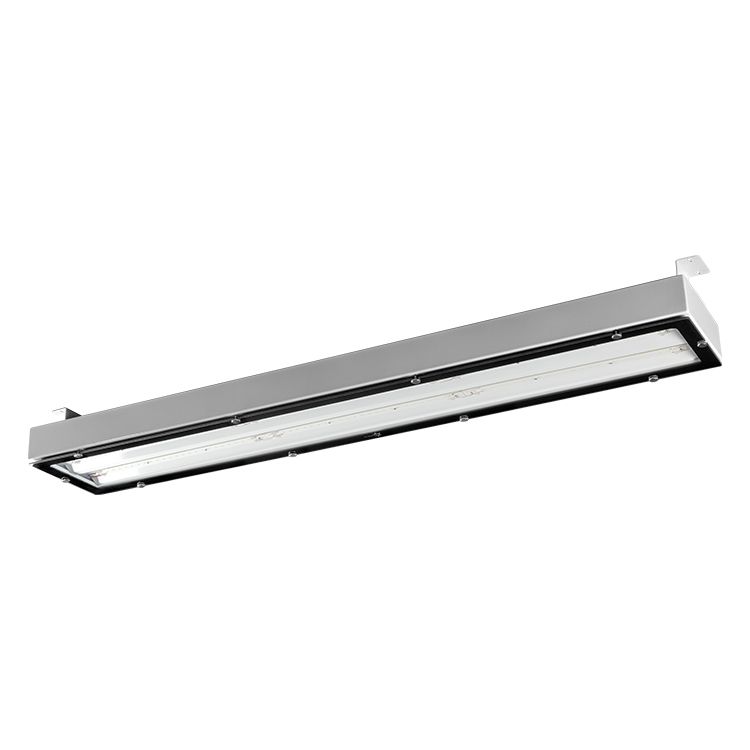

CARINA SERIES

CARINA SERIES
Nominal Voltage
220-240 VAC
Body Materials
Sheet Metal
Optics
Tempered Glass
Beam Angle
Optional
Led Options
Osram, Seul, Samsung
Class
I
Ingress Protection
IP65
Optional
Dimmer, DALI, Sensor
Product Code
Power Consumption (W)
Output Lumen (lm)
Correlated Color Temperature (CCT)
Color Rendering Index (CRI)
YLP-150Y
100 - 150
125000 - 18750
3000K / 4000K / 6500K
Min. 80


Product Code / Dimensions (mm)
L
W
H
Weight (gr)
YLP-150Y
1310
220
72
9000

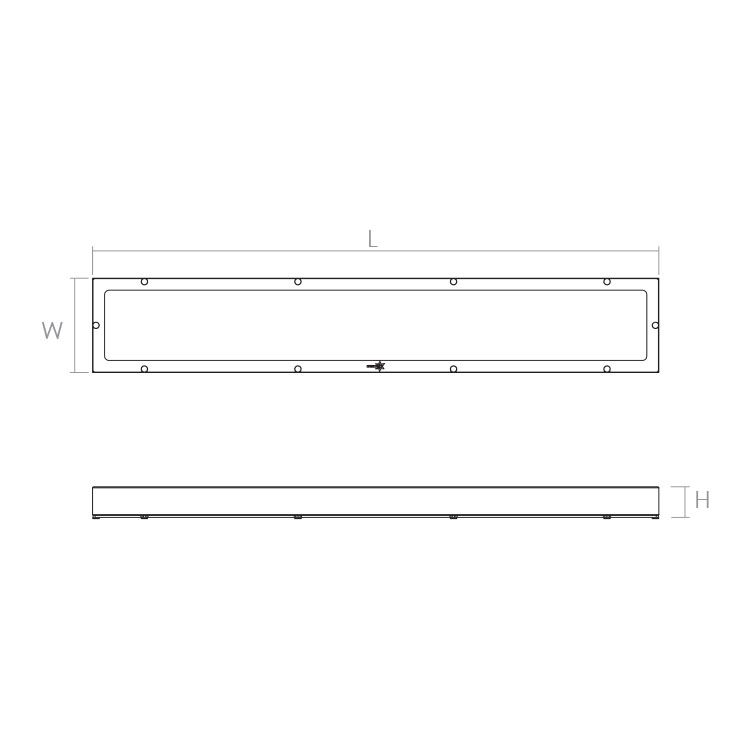

Technical Drawing

CARINA SERIES

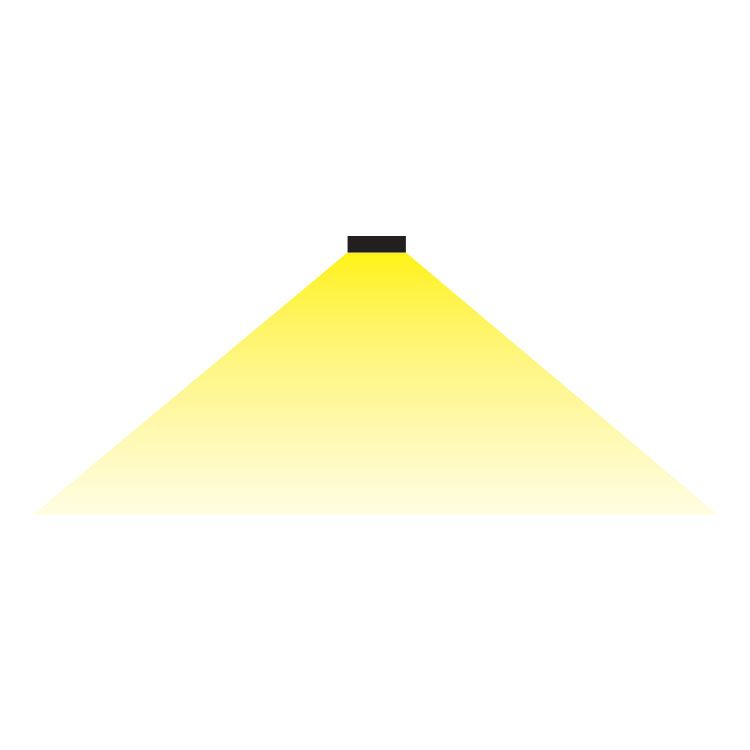

Light Distribution

CARINA SERIES
