Yıldız Led Lighting Solutions
Technical Street Lighting

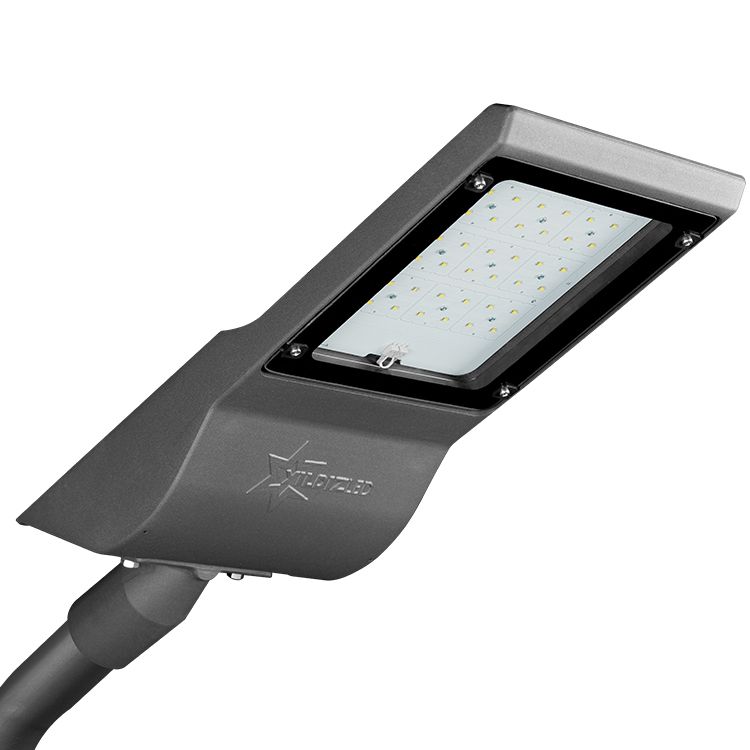

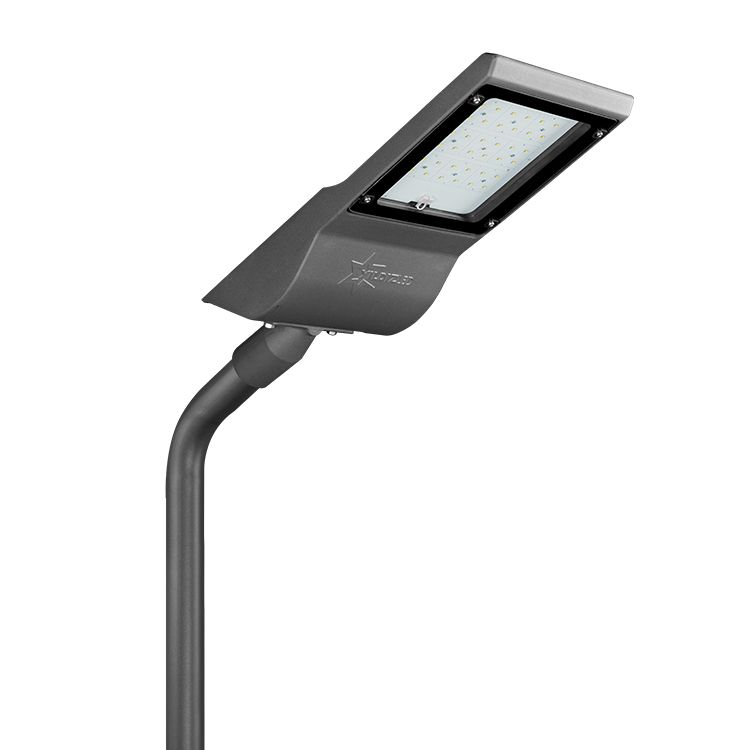

ELA L

ELA L
Nominal Voltage
220-240 VAC
Body Materials
Aluminum Injection
Optics
Tempered Glass
Beam Angle
Optional
Led Options
Osram, Seoul, Cree, Samsung
Class
I
Ingress Protection
IP66
Optional
Dimmer, DALI, Emergency Kit, Sensor
Product Code
Power Consumption (W)
Output Lumen (lm)
Correlated Color Temperature (CCT)
Color Rendering Index (CRI)
YLSE-XXX
30-160
3750-20000
3000K / 4000K / 6500K
Min. 80
Product Code / Dimensions (mm)
L
W
H
Weight (gr)
YLSE-XXX
623
250
110
8820

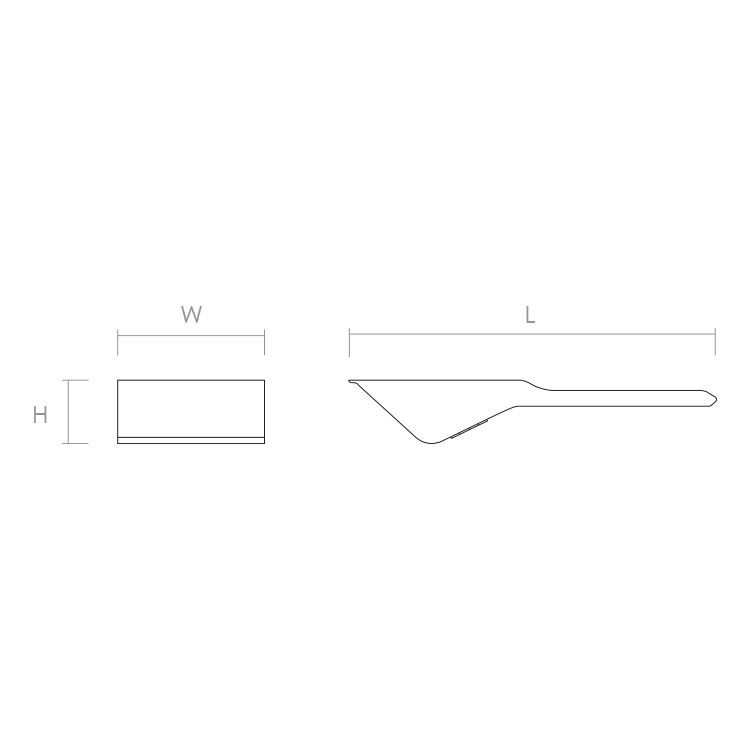

Technical Drawing

ELA L

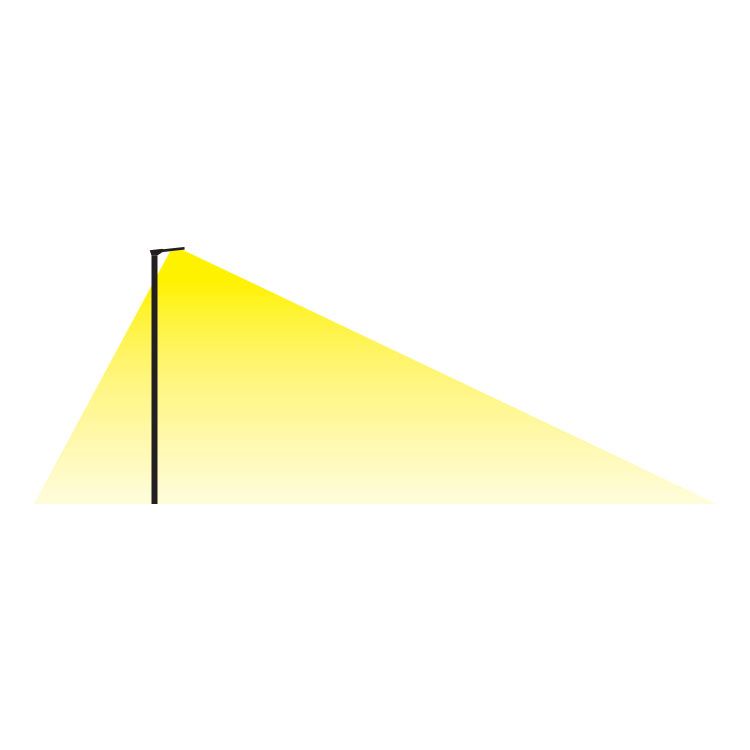

Light Distribution

ELA L
