Technical Street Lighting

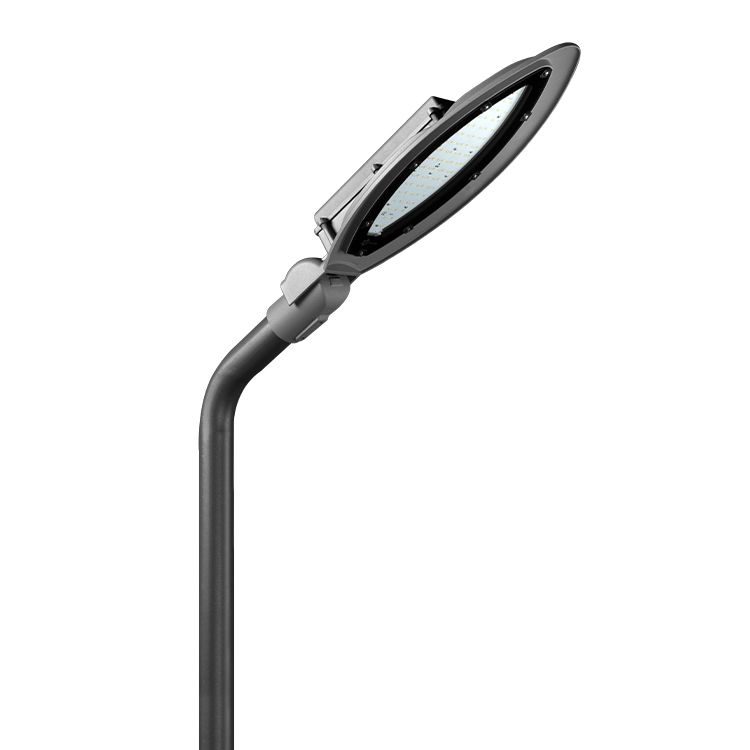

ELA M

ELA M
Nominal Voltage
220-240 VAC
Body Materials
Aluminum Injection
Optics
Tempered Glass
Beam Angle
Optional
Led Options
Osram, Seoul, Nichia, Cree, Samsung
Class
I
Ingress Protection
IP65
Optional
Dimmer, DALI, Emergency Kit, Sensor
Product Code
Power Consumption (W)
Output Lumen (lm)
Correlated Color Temperature (CCT)
Color Rendering Index (CRI)
YLS-66
30-70
3750-8750
3000K / 4000K / 6500K
Min. 80
Product Code / Dimensions (mm)
L
WH
Weight (gr)
YLSE-66
620
250
110
4570

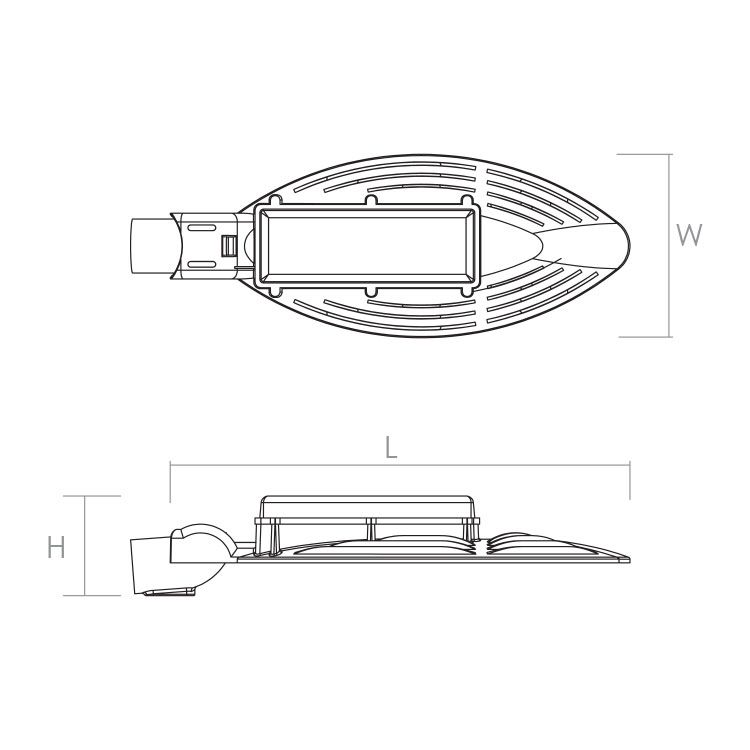

Technical Drawing

ELA M

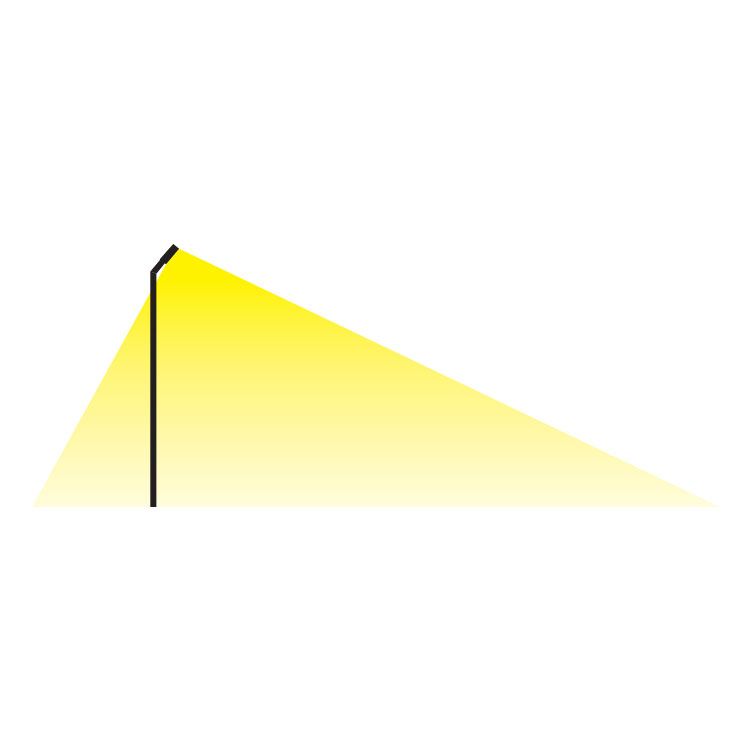

Light Distribution

ELA M
