Architectural Pool Lighting

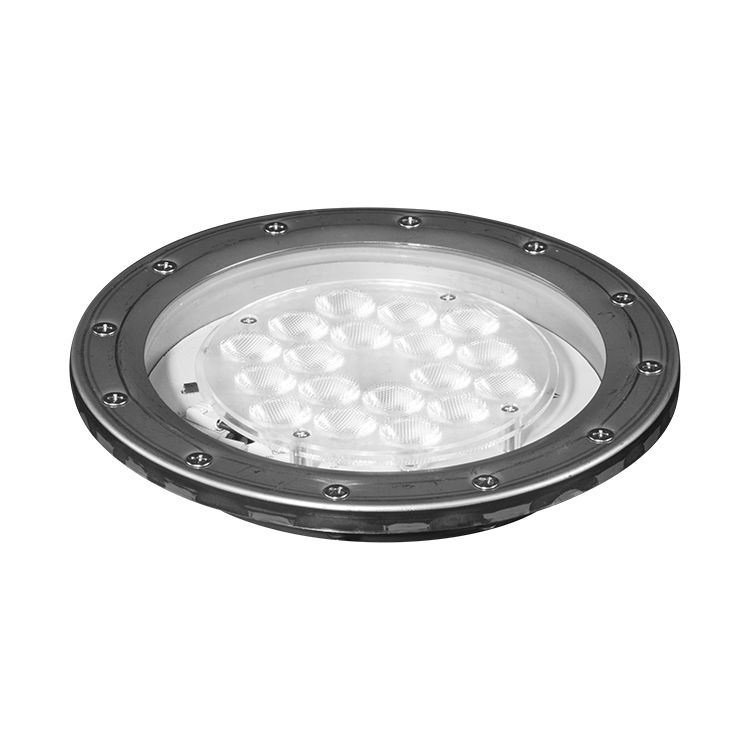

HALOS
Nominal Voltage
| 220-240 VAC
|
Body Materials
| Stainless Steel
|
Optics
| Tempered Glass
|

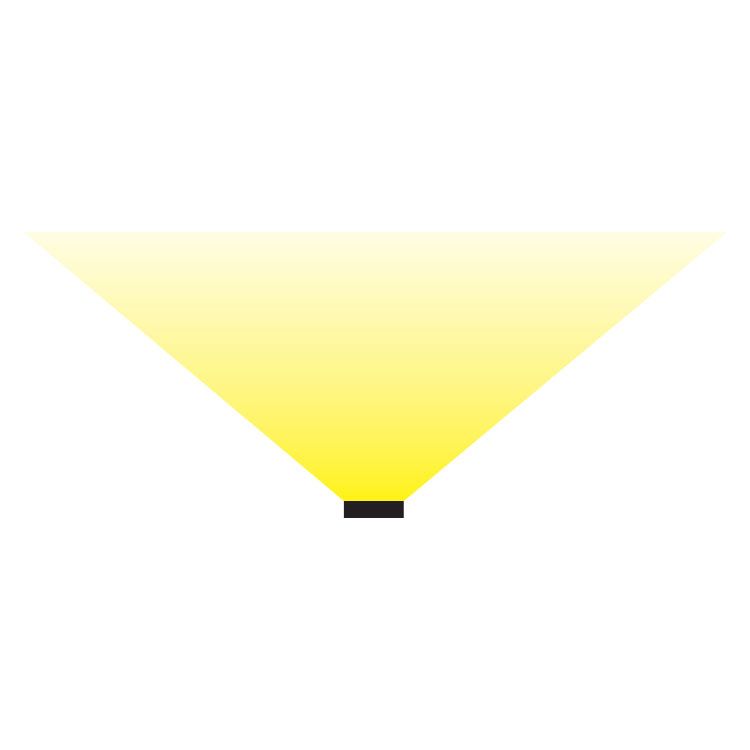

Beam Angle
| Optional
|
Led Options
| Osram, Seoul, Nichia, Cree
|
Class
| I
|
Ingress Protection
| IP68
|
Optional
| Dimmer, DALI, DMX
|
Product Code
| Power Consumption (W)
| Output Lumen (lm)
| Correlated Color Temperature (CCT)
| Color Rendering Index (CRI)
|
YL-HVZ-01
| 3
| 270
| 3000K / 4000K / 6500K / RGB
| Min. 80
|
YL-HVZ-02
| 9
| 810
| 3000K / 4000K / 6500K / RGB
| Min. 80
|
YL-HVZ-03
| 18
| 16200
| 3000K / 4000K / 6500K / RGB
| Min. 80
|

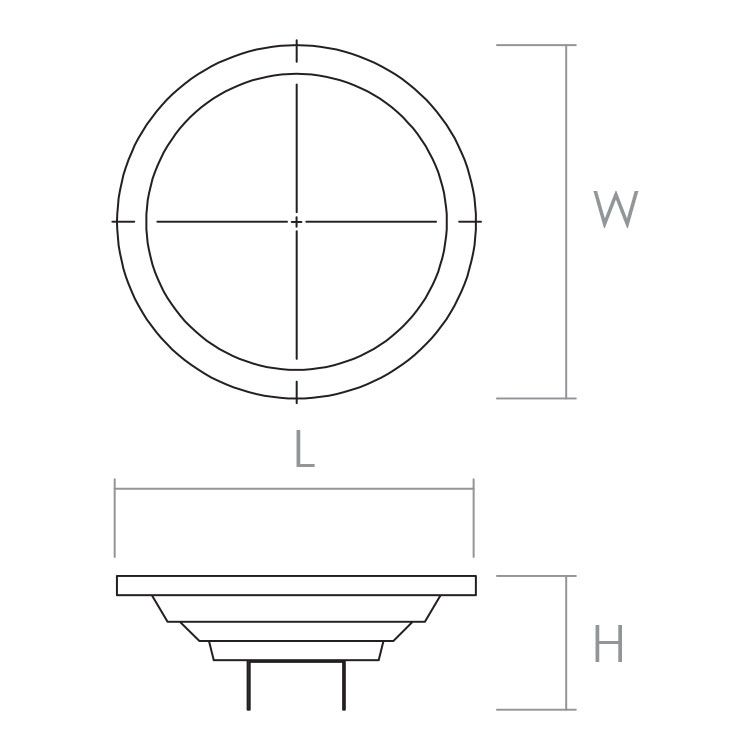

Product Code / Dimensions (mm)
| L | W | H | Weight (gr)
|
YL-HVZ-01
| 90
| 90
| 70
| 750
|
YL-HVZ-02
| 150
| 150 | 70
| 1350
|
YL-HVZ-03
| 185
| 185
| 86
| 1850
|
