Downlight Recessed
ACRUX
| Nominal Voltage | 220-240 VAC |
| Body Materials | Aluminum |
| Optics | PMMA Diffuser |
| Led Options | Osram, Seul, Samsung |
| Class | II |
| Ingress Protection | IP40 - IP65 |
| Optional | Dimmer, DALI, Emergency Kit , Seperately Mounted Sensor |
| Product Code | Power Consumption (W) | Output Lumen (lm) | Correlated Color Temperature (CCT) | Color Rendering Index (CRI) |
| YL-SPT-3-5 | 5 | 625 | 3000K / 4000K / 6500K | Min. 80 |
| YL-SPT-3-6 | 6 | 750 | 3000K / 4000K / 6500K | Min. 80 |
| YL-SPT-3-8 | 8 | 1000 | 3000K / 4000K / 6500K | Min. 80 |
| YL-SPT-3-12 | 12 | 1500 | 3000K / 4000K / 6500K | Min. 80 |
| YL-SPT-3-20 | 20 | 2500 | 3000K / 4000K / 6500K | Min. 80 |
| YL-SPT-3-25 | 25 | 3125 | 3000K / 4000K / 6500K | Min. 80 |

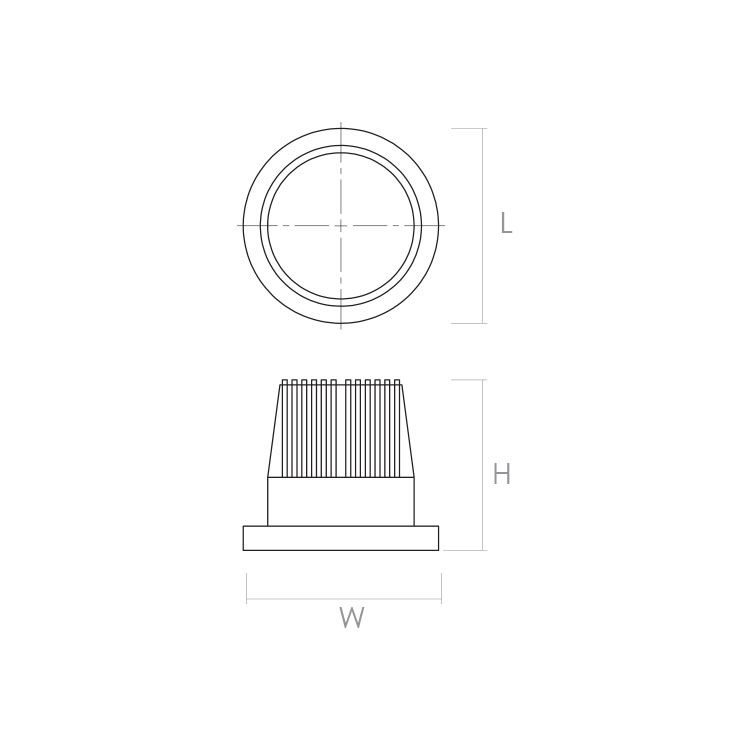

| Product Code / Dimension (mm) | L | W | H | Weight (gr) | Cut Out |
| YL-SPT-3-5 | 80 | 80 | 70 | 150 | 70 |
| YL-SPT-3-6 | 108 | 108 | 70 | 280 | 90 |
| YL-SPT-3-8 | 120 | 120 | 55 | 300 | 105 |
| YL-SPT-3-12 | 150 | 150 | 58 | 360 | 130 |
| YL-SPT-3-20 | 200 | 200 | 58 | 470 | 180 |
| YL-SPT-3-25 | 240 | 240 | 58 | 660 | 210 |
